Nissan LEAF Dashboard Lights: What Every Warning Light Means
Driving a Nissan LEAF is different from driving a traditional gasoline vehicle. Because the LEAF is fully electric, it uses advanced electronic systems to manage battery performance, charging, and electric motor operation.
To keep drivers informed, the LEAF dashboard includes a variety of indicator lights and symbols. Some simply show that a feature is active; others indicate that the vehicle needs attention.
Understanding what these dashboard lights mean can help you respond quickly if a warning appears and keep your vehicle performing at its best.
At Coulter Nissan, our team helps Nissan owners throughout the Phoenix area understand their vehicles and maintain them properly. This guide explains the most common Nissan LEAF dashboard lights, including EV-specific indicators you won’t see in gasoline vehicles.
If you have your Nissan LEAF manual in your glove box, and you should, put a sticky note on page 159 (for the 2026 model). We've uploaded it here; dash light info starts on page 180 in the file.
Handy link: All Nissan vehicle manuals and guides (just select your model and year).

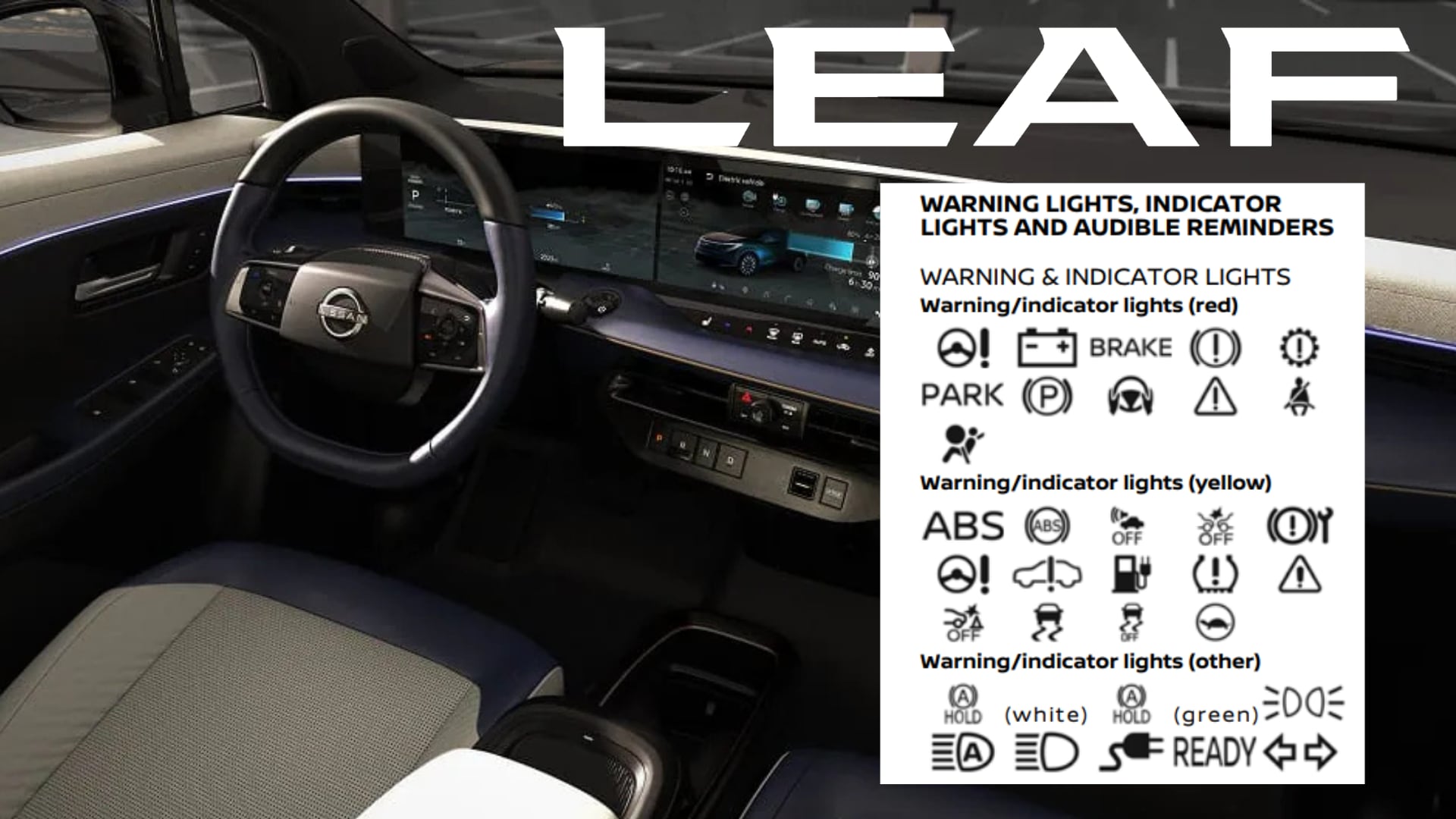

Green Dashboard Lights: Systems Operating Normally
Green indicator lights typically mean that a system is active and working as intended.
READY Indicator:
One of the most important indicators in the Nissan LEAF is the READY light.
Because electric vehicles operate almost silently, the READY indicator confirms that the vehicle is powered on and ready to drive. Once this light appears after pressing the start button, the vehicle can move immediately when the accelerator is pressed.
Cruise Control Indicator: This light appears when cruise control is active and maintaining a set speed.
ECO Mode Indicator: The ECO indicator shows that the vehicle is operating in energy-saving mode to help maximize battery efficiency and extend driving range.
Blue Dashboard Lights
Blue dashboard lights typically relate to the vehicle’s lighting system.
High Beam Indicator:
The blue headlight icon indicates that the high-beam headlights are currently activated. When approaching other vehicles, switch back to low beams to avoid reducing visibility for other drivers.
Yellow or Amber Dashboard Warning Lights
Amber lights generally indicate a system that requires attention soon, but may not require you to stop driving immediately.
EV System Warning Light:
This warning is specific to electric vehicles like the Nissan LEAF.
The EV system warning light may indicate an issue with:
- The electric motor
- The inverter system
- The high-voltage battery
- Electronic control modules
If this light appears, the vehicle may continue to operate normally, but you should schedule service to diagnose the issue as soon as possible.
Tire Pressure Monitoring System (TPMS):
The TPMS warning light indicates that one or more tires may be underinflated.
Maintaining proper tire pressure is especially important for electric vehicles because it directly affects driving range and efficiency.
Anti-Lock Brake System (ABS) Warning Light:
If the ABS light turns on, the anti-lock braking system may not be functioning correctly. The standard braking system will still operate, but the vehicle should be inspected.
Vehicle Dynamic Control (VDC) Indicator: This light relates to traction and stability control. It may flash while driving in slippery conditions, indicating the system is actively helping maintain traction.
Red Dashboard Warning Lights
Red dashboard lights usually indicate a more serious issue that should be addressed promptly.
Brake Warning Light:
The brake warning light may indicate:
- The parking brake is engaged
- Low brake fluid
- A brake system malfunction
If the light remains on while driving, the braking system should be inspected as soon as possible.
Master Warning Light:
The master warning light appears as a triangle with an exclamation point.
When this light illuminates, the vehicle has detected a condition that requires attention. Additional information will typically appear on the vehicle’s information display explaining the warning.
Charging System Warning: Although the LEAF does not use a traditional alternator like gasoline vehicles, this warning may indicate a problem with the vehicle’s electrical power management system.
Nissan LEAF Battery and Charging Indicators
Because the Nissan LEAF is a fully electric vehicle, it includes several indicators designed specifically to monitor battery performance and charging activity.

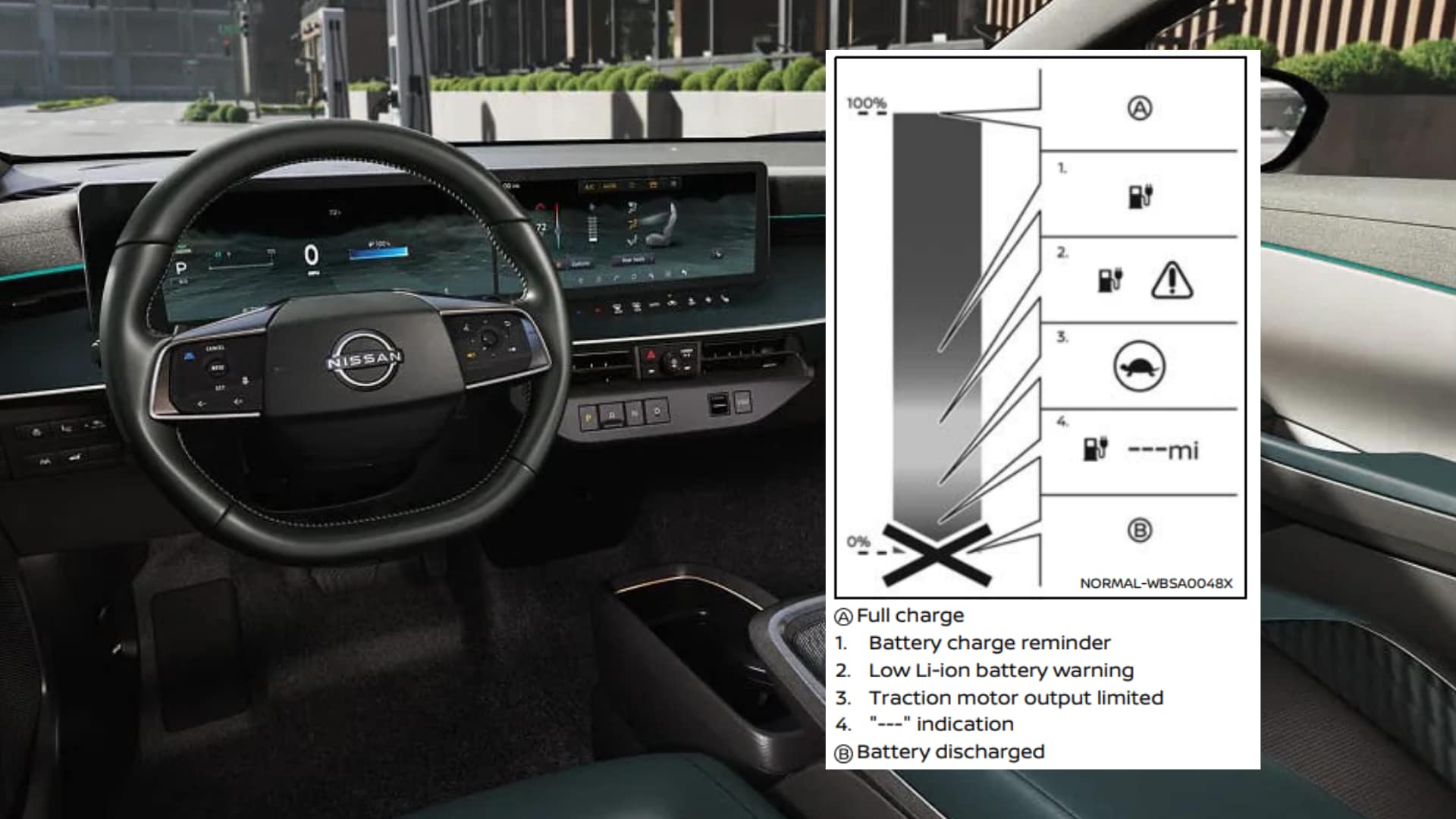

Battery Charge Gauge: The battery charge gauge shows the remaining charge in the high-voltage battery pack.
Keeping the battery within moderate charge levels can help optimize long-term battery health and driving range.
Charging Indicator Lights: When the vehicle is plugged in, dashboard icons and exterior charging lights indicate charging progress. These lights may show:
- Charging in progress
- Charging complete
- Charging timer activated
Plug-In Indicator Light:
The plug icon confirms that the vehicle is connected to a charging cable and receiving power.
Power Limitation Indicator:
Sometimes referred to as the “turtle light,” this symbol indicates that the vehicle’s power output has been temporarily limited.
This may occur if the battery charge becomes extremely low or if the battery temperature is outside the optimal operating range. When this indicator appears, it’s best to reduce speed and recharge the vehicle soon.
Low Battery Warning:
If the battery charge drops to a very low level, a warning message will appear on the dashboard.
The vehicle’s navigation system may also suggest nearby charging stations to help you recharge quickly.
What to Do If a Dashboard Warning Light Appears
If a warning light appears on your dashboard:
- Check the vehicle information display for additional details
- Safely pull over if a red warning light appears
- Schedule service if the warning remains on
Many dashboard lights simply indicate that a system needs maintenance or inspection, but addressing them quickly can help prevent larger issues.
Nissan LEAF Service in Phoenix
Electric vehicles typically require less routine maintenance than gasoline vehicles, but regular inspections still help ensure optimal performance.
Services may include:
- Tire inspections and rotation
- Brake system inspections
- Cabin air filter replacement
- Battery system checks
- Software updates
If you notice a warning light on your Nissan LEAF, the expert technicians at Coulter Nissan can help diagnose the issue and keep your electric vehicle running smoothly.
Schedule service today and keep your Nissan LEAF performing at its best.
Nissan LEAF Dashboard Lights FAQ
What does the READY light mean on a Nissan LEAF?
The READY indicator confirms that the Nissan LEAF is powered on and ready to drive. Because the electric motor is nearly silent, this light confirms the vehicle is operational.
What does the EV system warning light mean?
The EV system warning light indicates a potential issue with the electric powertrain, such as the motor, inverter, or battery system. If this light appears, it’s best to schedule service to diagnose the issue.
What is the turtle light on a Nissan LEAF?
The turtle icon indicates that the vehicle has entered reduced-power mode to protect the battery. This usually happens when the battery charge is extremely low or the battery temperature is outside the normal operating range.
What does the plug icon mean on the dashboard?
The plug indicator confirms that the vehicle is connected to a charging cable and actively charging.
Why is my Nissan LEAF showing a low battery warning?
The low battery warning appears when the battery charge is nearly depleted. Charging the vehicle soon will restore normal driving performance.
Handy link: Nissan Dashboard Symbol Guide: All Warning & Indicator Lights
